GW214PPB4 Square bore agricultural ball bearings Disc harrow ball bearings
  • GW214PPB4 Square bore agricultural ball bearings Disc harrow ball bearings
  • Price:
  • USD***
  • Mini Order:
  • 100 PCS
  • Capacity:
  • 50000 PCS /Month
  • Nearest Port:
  • Ningbo or Shanghai
  • Payment Terms:
  • TT L/C D/P D/A Paypal west-union
  • Price Terms:
  • FOB CIF CNF DDU
  • Lead Time:
  • 5-90 days

Product Packing & Delivery

Packing Detials:Industrial packing, Single box, or as customer's request


Delivery Detail:Be Allowed By Sea,By Air,By Rallway Or Express.

Product Quick Details

A square bore is the most prominent feature of this series agricultrual bearings ,their base structure belong to single row deep groove ball bearing. Used in applications where collars, set screws, or any other locking devices are not required. This series incorporates a close fitting metal shield backed by a molded rubber seal. Also available relubricable-prefix "G". KSC bearing corporation professional supply high quality GW214PPB4 Square bore agricultural ball bearings Disc harrow ball bearings for global buyer, the first choice of agricultural machine factory, farm machinery parts company and bearing company.

Bearing Number:GW214PPB4
Brand:KSC, Neutral or OEM
Size (mm):52.2 x 125 x 39.675 / 39.675
Material:GCr15 Chrome steel
Precision:P0 P6 P5
Clearence:C0 C2 C3 C4 C5
Cage:Steel cage or polyamide cage
Weight (Kg):2.155
Country of Origin:CHINA
Certification:ISO9001

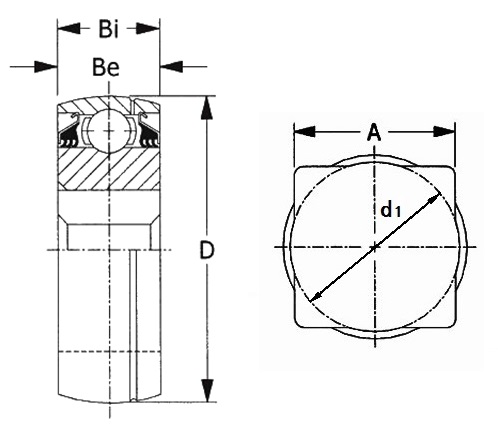

PEER UNIT NUMBER Type Shaft Size A D Be Bi Load Ratings Wt.
mm mm mm mm mm Dynamic Static kg
GW214PPB4 9 50.8 52.2 125 39.675 39.675 14000 8800 2.155
GW216PP2 10 57.15 58.8 140 30 63.5 16280 10400 2.867
W216PP2 4 57.15 58.8 140 30 63.5 16280 10400 2.867
