- GW211PP17 DC211 TT R3E Square bore agricultural ball bearings Disc harrow bearings
- Price:
- USD***
- Mini Order:
- 100 PCS
- Capacity:
- 100000 PCS /Month
- Nearest Port:
- Ningbo or Shanghai
- Payment Terms:
- TT L/C D/P D/A Paypal west-union
- Price Terms:
- FOB CIF CNF DDU
- Lead Time:
- 5-90 days
Product Packing & Delivery
Packing Detials:Industrial packing, Single box, or as customer's request
Delivery Detail:Be Allowed By Sea,By Air,By Rallway Or Express.
Product Quick Details
A square bore is the most prominent feature of this series agricultrual bearings ,their base structure belong to single row deep groove ball bearing. Used in applications where collars, set screws, or any other locking devices are not required. This series incorporates a close fitting metal shield backed by a molded rubber seal. Also available relubricable-prefix "G". GW211PP17 Square bore bearing also named DC211 TT R3E , KSC bearing corporation professional supply high quality GW211PP17 DC211 TT R3E Square bore agricultural ball bearings Disc harrow bearings for global buyer, the first choice of agricultural machine factory, farm machinery parts company and bearing company.
Bearing Number: | GW211PP17 |
Interchanged No.: | DC211 TT R3E |
Brand: | KSC, Neutral or OEM |
Size (mm): | 38.89 x 100 x 44.45 / 33.325 |
Material: | GCr15 Chrome steel |
Precision: | P0 P6 P5 |
Clearence: | C0 C2 C3 C4 C5 |
Cage: | Steel cage or polyamide cage |
Weight (Kg): | 1.188 |
Country of Origin: | CHINA |
Certification: | ISO9001 |

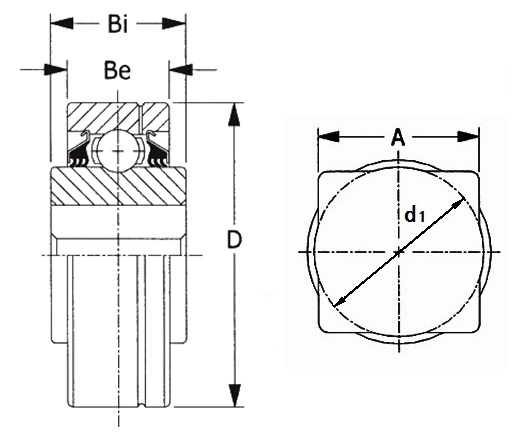

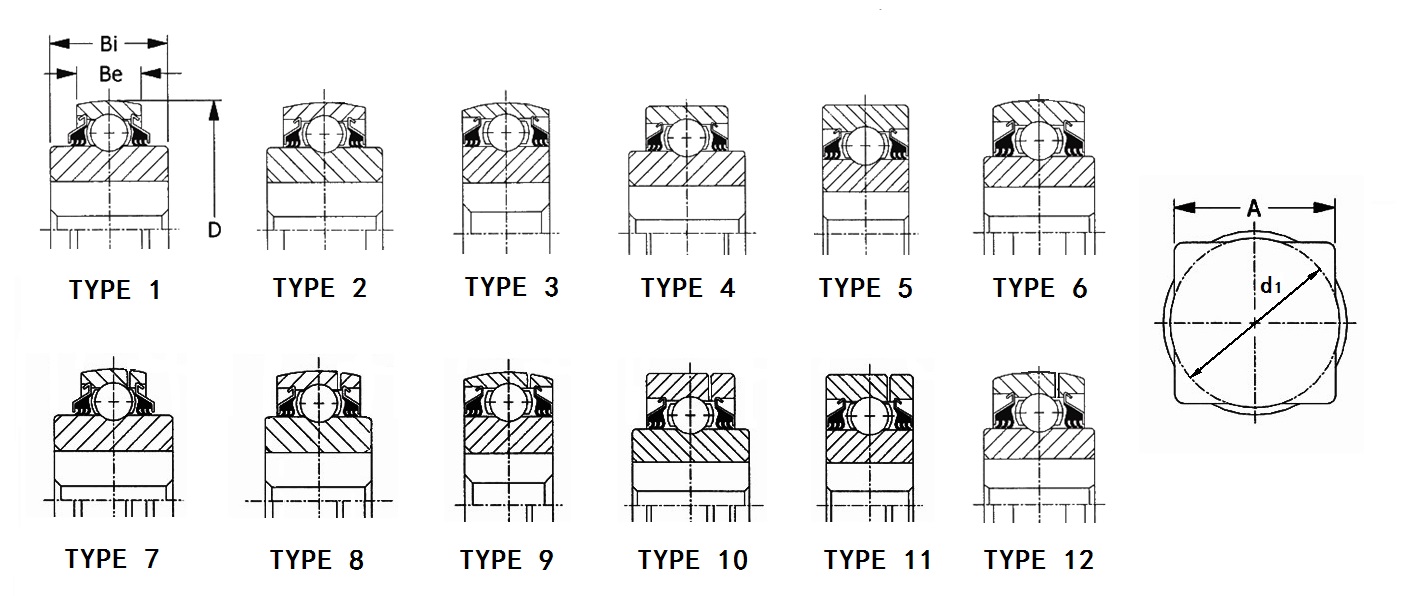

PEER UNIT NUMBER | Type | Shaft Size | A | D | Be | Bi | Load Ratings | Wt. | |
mm | mm | mm | mm | mm | Dynamic | Static | kg | ||
W209PPB5 | 2 | 31.75 | 32.766 | 85 | 30.175 | 36.52 | 7350 | 4150 | 0.794 |
W209PPB7 | 6 | 31.75 | 32.766 | 85.75 | 30.175 | 36.51 | 7350 | 4150 | 0.816 |
GW209PPB5 | 8 | 31.75 | 32.776 | 85 | 30.175 | 36.525 | 7350 | 4150 | 0.794 |
GW209PPB8 | 7 | 31.75 | 32.776 | 85 | 22 | 36.525 | 7350 | 4150 | 0.748 |
W211PP3 | 5 | 38.1 | 38.89 | 100 | 33.324 | 33.324 | 9740 | 5850 | 1.266 |
W211PPB3 | 3 | 38.1 | 38.89 | 100 | 33.324 | 33.324 | 9740 | 5850 | 1.207 |
GW211PPB3 | 9 | 38.1 | 38.89 | 100 | 33.325 | 33.325 | 9740 | 5850 | 1.207 |
GW211PP17 | 10 | 38.1 | 38.89 | 100 | 33.325 | 44.45 | 9740 | 5850 | 1.188 |
GW211PPB17 | 7 | 38.1 | 38.89 | 100 | 33.325 | 44.45 | 9740 | 5850 | 1.157 |
W211PP5 | 4 | 38.1 | 38.89 | 101.6 | 36.52 | 44.45 | 9740 | 5850 | 1.533 |
GW211PP5 | 10 | 38.1 | 38.89 | 101.6 | 36.525 | 44.45 | 9740 | 5850 | 1.22 |
W211PPB6 | 6 | 38.1 | 38.89 | 103.556 | 36.52 | 44.45 | 9740 | 5850 | 1.837 |
GW211PP3 | 11 | 38.1 | 39.89 | 100 | 33.325 | 33.325 | 9740 | 5850 | 1.266 |
W209PPB30 | 6 | 30 | 90 | 29 | 45 | 7350 | 4150 | 1.155 |
