M88048/M88010 inch taper roller bearing
  • M88048/M88010 inch taper roller bearing
  • Price:
  • USD1-10
  • Mini Order:
  • 10 PCS
  • Capacity:
  • 100000 PCS /Month
  • Nearest Port:
  • Ningbo or Shanghai
  • Payment Terms:
  • TT L/C D/P D/A Paypal west-union
  • Price Terms:
  • FOB CIF CNF DDU
  • Lead Time:
  • 5-90 days

Product Packing & Delivery

Packing Detials:Industrial packing, Single box, or as customer's request


Delivery Detail:Be Allowed By Sea,By Air,By Rallway Or Express.

Product Quick Details

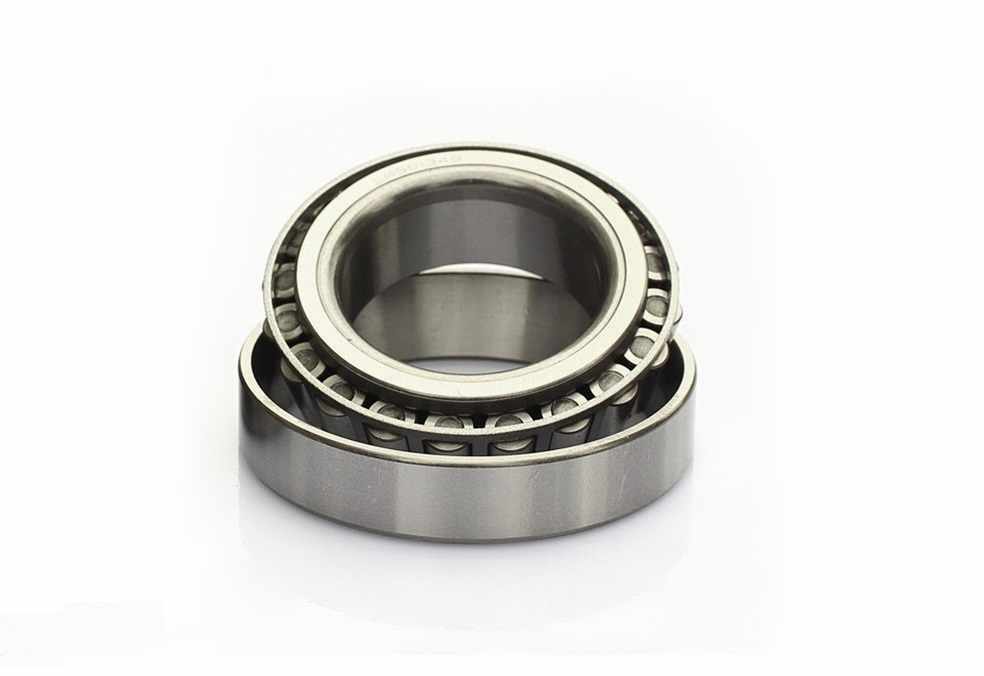

Taper roller bearings are one of the most common bearing type, only less than deep groove ball bearings, it composed by one cup, one cone,one cage and a group of taper rollers. KSC bearing corporation professional supply all kinds of taper roller bearings,high performance & good prices,the first choice of distributor and end user.

Bearing Number:M88048/M88010
Brand:KSC, Neutral or OEM
Size (mm):33.338 x 68.262 x 22.225 x 22.225 x 17.462
Material:GCr15 chrome steel
Precision:P0 P6 P5
Cage:Steel cage (sand blasting or black finish)
Weight (Kg):0.373
Country of Origin:CHINA
Certification:ISO9001

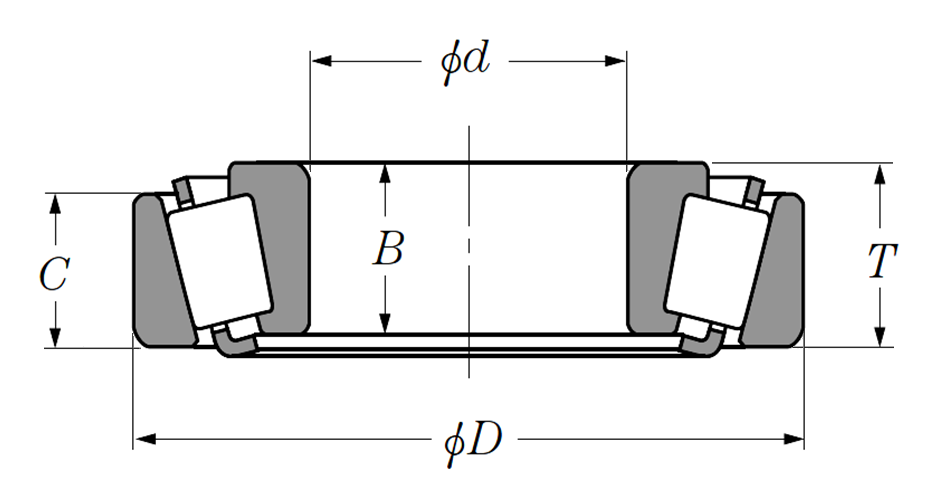

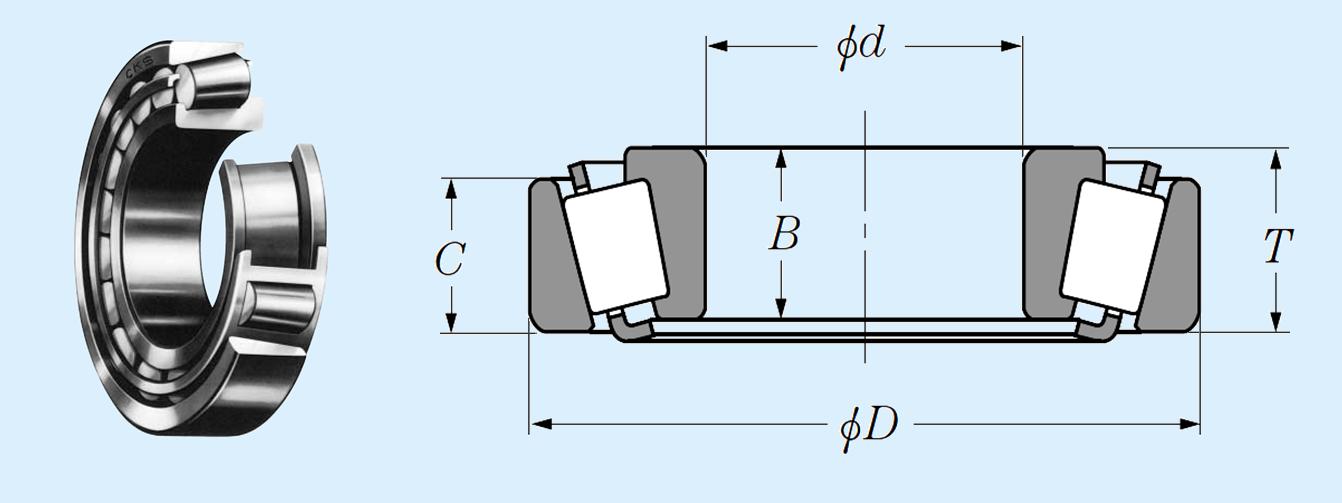

Basic Bearing No. Dimensions (mm) Load Rating (KN) Weight
approx.
KG
d D T B C R min r min Dynamic
C
Static
C0
14118/14274 30 69.012 19.845 19.202 15.875 0.8 3.3 48.1 57.8 0.352
M86649/M86610 30.162 64.292 21.433 21.433 16.67 1.5 1.5 48.1 67 0.332
M86649/M86610-V 30.162 64.292 21.433 21.433 16.67 1.5 1.5 48.1 67 0.332
M88043/M88010 30.162 68.262 22.225 22.225 17.462 2.3 1.5 56.1 71 0.398
M88043G/M88010G 30.162 69.262 22.225 22.225 17.462 2.3 1.5 56.1 71 0.398
M88043Z/M88010Z 30.162 68.262 22.225 22.225 17.462 2.3 1.5 56.1 71 0.398
15118/15245 30.213 62 19.05 20.638 14.288 3.5 1.3 44.7 50.9 0.254
15118/15250 30.213 63.5 20.638 20.638 15.875 3.5 1.3 44.7 50.9 0.286
15118/15250X 30.213 63.5 20.638 20.638 15.875 3.5 1.5 44.7 50.9 0.286
02475/02420 31.75 68.262 22.225 22.225 17.462 3.5 1.5 56.2 65.7 0.37
14123AA/14276 31.75 69.012 26.983 26.721 15.875 4.3 1.3 48.1 57.8 0.385
14125A/14274 31.75 69.012 19.845 19.583 15.875 3.5 3.3 48.1 57.8 0.341
14125A/14276 31.75 69.012 19.845 19.583 15.875 3.5 1.3 48.1 57.8 0.342
14125A/14283 31.75 72.085 22.385 19.583 18.415 3.5 2.3 48.1 57.8 0.38
15123/15243 31.75 61.912 18.161 19.05 14.288 SP 2 44.7 50.9 0.236
15123/15244 31.75 62 19.749 19.05 15.875 SP 1.3 44.7 50.9 0.252
15123/15245 31.75 62 18.161 19.05 14.288 SP 1.3 44.7 50.9 0.238
15123/15250X 31.75 63.5 19.749 19.05 15.875 SP 1.5 44.7 50.9 0.27
15126/15245 31.75 62 19.05 20.638 14.288 0.8 1.3 44.7 50.9 0.247
15126/15250X 31.75 63.5 20.638 20.638 15.875 0.8 1.5 44.7 50.9 0.28
HM88542/HM88510 31.75 73.025 29.37 27.783 23.02 1.3 3.3 74.1 101 0.611
LM67045/LM67010 31.75 59.131 15.875 18.5 11.811 2 1.3 33.9 42.5 0.188
LM67048/LM67010 31.75 59.131 15.875 16.764 11.811 SP 1.3 33.9 42.5 0.177
LM67048/LM67014 31.75 61.986 15.875 16.764 11.811 SP 1.3 33.9 42.5 0.197
LM67048L/LM67010 31.75 59.13 15.875 16.764 11.811 3.5 1.3 33.9 42.5 0.184
LM67048RS/LM67010 31.75 59.131 15.875 16.764 11.811 SP 1.3 33.9 42.5 0.185
LM67048Z/LM67010BA 31.75 58.877 6.833 16.764 11.811 SP 1.3 33.9 42.5 0.176
LM67048Z/LM67010Z 31.75 59.131 15.875 16.764 11.811 SP 1.3 33.9 42.5 0.185
LM67049A/LM67010 31.75 59.131 15.875 16.764 11.811 0.8 1.3 33.9 42.5 0.183
LM67049A/LM67014 31.75 61.986 15.875 16.764 11.811 0.8 1.3 33.9 42.5 0.203
LM67049AX/LM67010X 31.75 59.131 15.875 16.764 11.811 0.3 0.5 37.8 42.7 0.183
M88046/M88010 31.75 68.262 22.225 22.225 17.462 1.5 1.5 56.1 71 0.398
JL26749/JL26710 32 53 14.501 15 11.5 SP 1.3 30.6 39.5 0.122
14130/14274 33.338 69.012 19.845 19.583 15.875 3.5 3.3 48.1 57.8 0.326
14130/14276 33.338 69.012 19.845 19.583 15.875 3.5 1.3 48.1 57.8 0.326
14131/14274 33.338 69.012 19.845 19.583 15.875 0.8 3.3 48.1 57.8 0.327
14131/14276 33.338 69.012 19.845 19.583 15.875 0.8 1.3 48.1 57.8 0.328
2790/2720 33.338 76.2 23.812 25.654 19.05 1.5 3.3 75.5 94 0.547
HM88547/HM88510 33.338 73.025 29.37 27.783 23.02 0.8 3.3 74.1 101 0.59
HM89443/HM89410 33.338 76.2 29.37 28.575 23.02 0.8 3.3 79.6 107 0.653
M88048/M88010 33.338 68.262 22.225 22.225 17.462 0.8 1.5 56.1 71 0.373
M88048/M88010-VA 33.338 68.262 22.225 22.225 17.462 0.8 1.5 56.1 71 0.373
14136A/14276 34.925 69.012 26.983 26.721 15.875 0.8 1.3 48.1 57.8 0.349
14137A/14274 34.925 69.012 19.845 19.583 15.875 1.5 3.3 48.1 57.8 0.317
14137A/14276 34.925 69.012 19.845 19.583 15.875 1.5 1.3 48.1 57.8 0.318
14137AS/14276 34.925 69.012 19.845 19.583 15.875 0.5 1.3 46.2 55 0.318
14138A/14274 34.925 69.012 19.845 19.583 15.875 3.5 3.3 48.1 57.8 0.314
14138A/14276 34.925 69.012 19.845 19.583 15.875 3.5 1.3 48.1 57.8 0.315
14138A/14283 34.925 72.085 22.385 19.583 18.415 3.5 2.3 48.1 57.8 0.356
14585/14525 34.925 68.262 20.638 20.638 15.875 3.5 2.3 51.1 61 0.331
25877/25821 34.925 73.025 23.812 24.608 19.05 1.5 0.8 72.5 87.9 0.467
28137/28317 34.925 80.035 21.433 20.94 15.875 1.5 1.5 57.3 65.9 0.496
HM88649/HM88610 34.925 72.233 25.4 25.4 19.842 2.3 2.3 66.9 87.3 0.483
HM89446/HM89410 34.925 76.2 29.37 28.575 23.02 3.5 3.3 79.6 107 0.642
LM48548/LM48510 34.925 65.088 18.034 18.288 13.97 SP 1.3 45.7 58 0.25
LM48548/LM48514XP 34.925 68.262 18.034 18.288 13.97 SP 1.2 45.7 58 0.25
15036/JL68111Z 35 60 15.875 18.46 11.938 2 1.3 31.5 47.5 0.185
328227CA/Q 35 60 13 18.5 13 2 1 26.7 30.2 0.164
328227FCA/Q 35 60 13 18.5 13 2 1 26.7 30.2 0.155
35KC802 35 80 29.15 28.5 22 2 2 91.2 109 0.711
JL68145/JL68111Z 35 60 15.875 18.46 11.938 2 1.3 31.5 47.5 0.185
L68149/L68110 35 59.131 15.875 16.764 11.938 SP 1.3 33.3 44.4 0.167
L68149/L68111 35 60 15.875 16.764 11.938 SP 1.3 33.3 44.4 0.175
L68149/L68116 35 65.088 15.875 16.764 11.938 SP 1.5 33.3 44.4 0.222
L68149R/L68110 35 59.131 15.875 16.764 11.938 1 1.3 33.3 44.4 0.168
LM78349/LM78310A 35 62 16.7 17 13.6 SP 1.5 40.9 52.8 0.203
HM88648/HM88610 35.717 72.233 25.4 25.4 19.842 3.5 2.3 66.9 87.3 0.473
HM89249/HM89210 36.512 79.375 29.37 28.829 22.664 3.5 3.3 89 108.6 0.685
HM89448/HM89410 36.512 76.2 29.37 28.575 23.02 0.8 3.3 79.2 106 0.623
HM89449/HM89410 36.512 76.2 29.37 28.575 23.02 3.5 3.3 79.2 106 0.623
JL69345/JL69310Z 38 63 17 19 13.5 SP 1.3 38.6 52.4 0.205
JL69348Z/JL69310Z 38 63 17 17 13.5 3.3 1.3 38.6 52.4 0.199
JL69349/JL69310Z 38 63 17 17 13.5 SP 1.3 38.6 52.4 0.199
JL69349A/Q-JL69310/Q 38 63 17 17 13.5 1.3 1.3 37 53.8 0.206
JL69349Y/JL69310Y 38 63 17 17 13.5 SP 1.3 38.6 52.4 0.199
15055/LM29710 38.1 65.088 18.034 21.288 13.97 3.7 1.3 43.3 56.8 0.245
16150/16284 38.1 72.238 20.638 20.638 15.875 3.5 1.3 49.8 61.3 0.345
19150/19268 38.1 68.262 15.875 16.52 11.908 1.5 1.5 47.1 55.5 0.235
25572/25520 38.1 82.931 23.812 25.4 19.05 0.8 0.8 78 100 0.639
2788A/2729 38.1 76.2 23.812 25.654 19.05 1.5 0.8 75.5 94 0.5
3490/3420 38.1 79.375 29.37 29.771 23.812 3.5 3.3 87.6 105.6 0.645
57207/LM29710 38.1 65.088 18.034 18.288 13.97 XLJ 1.3 43.3 56.8 0.226
57410S/LM29710S 38.1 65.088 18.034 21.139 13.97 SP 1.3 43.3 56.8 0.231
LM29748/LM29710 38.1 65.088 18.034 18.288 13.97 SP 1.3 43.3 56.8 0.226
LM29749/LM29710 38.1 65.088 18.034 18.288 13.97 2.3 1.3 43.3 56.8 0.231
LM29749/LM29711 38.1 65.088 19.812 18.288 15.748 2.3 1.3 43.3 56.8 0.245
038KC68 38.5 68 18.25 16.5 15 2 1.5 44.1 55.6 0.257
J16154/J16285 39 72.014 21.4 20.638 16.637 3.5 0.4 49.8 61.3 0.352
M201047/M201011 39.688 73.025 25.654 22.098 21.336 0.8 2.3 63 81 0.422
568331 (=BT1B 328358 SKF) 31.75 76.2 25.4 25.4
HM813839/HM813810 36.512 127 36.512 36.512 26.988 3.5 3.3 2.2
